Oписание продукта

Welcome to SUNFLOWERVDP professional video intercom system unit factory store. All video door phone intercom system and parts come from our factory! We have strong technic and engineer supporting!



  • ​We have the video showing about the products works and the installs, if you need it, kindly leave message to us! And the video in aliexpress only for your reference!
  • ​Add our aliexpress store in your wish list before place the order to us, become our VIP buyer, some special or new products you will enjoy more discount automatic based on on line price

Warranty: ( sunflowervdp)

5 years products and accessories warranty!

***We will test all products more than three times before ship to you, all packages will be very strong!

***We will pay for repair fee and free parts fee and the shipping fee from china to your address within the warranty!

***All of our products are covered by 7 days no reason to return service, the product can exchange or get refund only under good condition within 7 days!



For Save More By Collecting Coupons Before Buying! Check Here......

3 keys outdoor unit with upgraded chips are adopted for highly stable performance of this 4.3"color lcd wired video door phone. With this full kit, it will be more convenient to build the full access control system for the home security. You can open the door lock either from indoor or outdoor through several ways (indoor monitor remote unlock; Rfid Cards unlock: Keys unlock). Support up to 999 apartments! for more details, inquiry us!

3 buttons outdoor unit +3pcs color 4.3inch indoor monitors+Rfid unlock function elctronic lock+Access control power supply+Door exit and full kit

V4.3-3



High cost performance, Custom-made only for you!

Video door phone- let your life more safer and comfortable!

Brief description indoor monitor: (4.3inch color lcd)
  • Function: door release, video intercom, doorbell, call other monitors, monitor outside etc
  • Input power: AC 100-240V 50/60Hz
  • Power mode: DC15V1.5A
  • Support color & B/W CMOS & CCD Cameras
  • Volume/Contrast/Brightness controlable
  • Audio and video out & music: 36 music to adjustable
  • Hand free communication
  • Intercom among indoor units, ringback function,
  • Color Size: TFT-LCD 4.3inch digital HD 190 (length) * 130 (width) * 25 (thickness) mm
  • Material: ABS engineering plastic, acrylic panel
  • Cable: 4 core wire/5 core wire
  • Max distance: 100 m-150m
  • Installation: Surface Mount
  • Monitor talk with monitor: supporting this function will permit only when the same button works with more indoor monitors together!
  • Operation temperature: -20 to +60
  • Weight: 0.45kg
  • Support max 3v6

509960375_198

 SF-V43D11 2SF-V43D11 6SF-V43D11 5SF-V43D11 4XSL-V43D11 1XSL-V43D11 2XSL-V43D11 3XSL-V43D11 5


Brief description outdoor camera: (3 buttons)
  • 3 buttons for 3 different apartments
  • Camera resolution: 510*492(NTSC), 700 Lines
  • Camera lens: 1/4 color ccd camera
  • Power adapter: from monitor, DC15V or from access control power supply
  • Working temperature: -40F to 131F (-40C to+ 55C)
  • Viewing angle: (U/D/L/R, degree): 60/35/70/92
  • Connection: 2cored wire/4 cored wire/5 cored wire/6 cored wire (Up to 48 monitors)
  • Case: Aluminum panels, weatherproof
  • Camera with infrared light for better night vision;
  • Illumination 0 lux/F1.2
  • Working power consumption: ≤3.6W
  • Weather proof, oxidation proof, durable alloy outdoor door station, supporting!
  • Support 2/3/4/5/6/8/10/12 buttons outdoor units. each button can work with max 4 indoor monitors together!
  • Support two outdoor units works more indoor monitors together
  • Outdoor unit size: 276mm*122mm*45mm
  • Outdoor unit insallation size: 246mm*112mm*32m

Operation: (very easy)

  • The visitor press call button of outdoor unit, the related indoor monitor will ringing and show the visitor\'s video
  • The householder press "talk" button to dual intercom with the visitor, press "unlock" button to unlock the door
  • The householder press "monitor" button to monitor the status of outdoor unit, press "talk" button to talk
  • With Rfid electric lock, the hoster can open the door by Rfid card

Wiring requirements:

  • 30 m: RVV4 (4 polishing) x 0.5 mm
  • 50 m: RVV4 (4 polishing) x 0.75 mm
  • 100 m-150m: RVV4 (4 polishing) x 1.0 m

Certificate: CE(EMC .LVD R.TEE), RoHS,FCC

509960375_198

This kinds of vided intercom outdoor camera support 2/3/4/5/6/8/10/12buttons!

520--3

520-2_11

Open the cover/Mounting Bracket

520-3

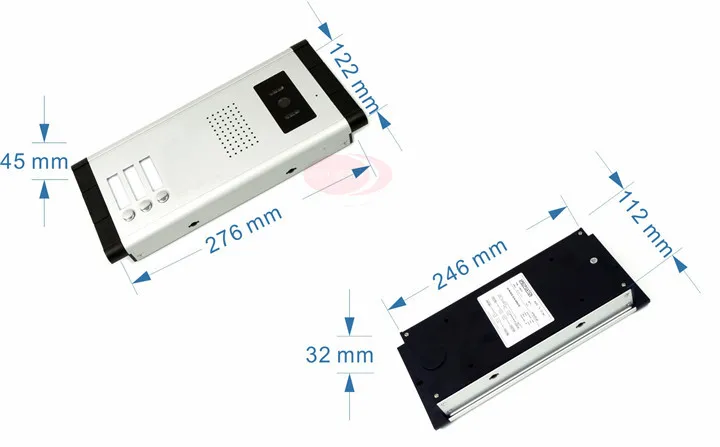

Outdoor unit size: 276mm*122mm*45mm

Outdoor unit insallation size: 246mm*112mm*32mm

520-3

Mic/Camera/Led/Aluminum panels/ Call button/Speaker

520-2_61

Link lock/ link indoor unit/link indoor unit

Other buttons (6/8/12) outdoor unit inside wires and electronic board show:

520-2

Wires connection for example: (Two different way, one is by  adapter power supply, another is by central power supply, factory only match adapter power supply! )

100V-240V adapter power supply : SF-520-XX and Rfid electric lock:

V43

Central power supply : SF-520-XX and Rfid electric lock:

V43

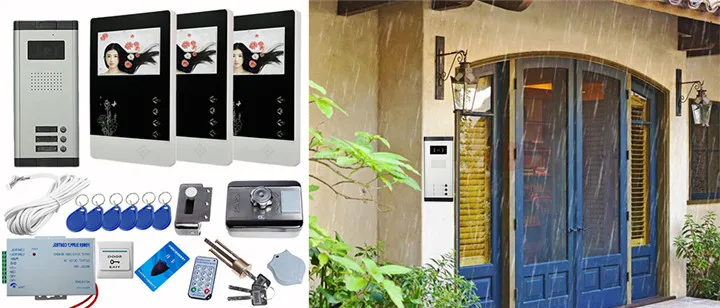

Installation show:

The standard height for the door station installation (check the photo show)

1: Pass the set iron through the holds on both side of the outdoor station, and fix it on the door.

2: Fix the buttom cover on the wall with the screws

3: Hang the indoor phone on the bracket and lock it well, then plug the power in. power source

V43

509960375_198

1: Mic; 2:Infrared tube; 3: Camera; 4: Speaker
5: Room number zone; 6: Call button; 7: The port of electronic lock
8: Indoor phone intercface

P: POWER-red
G: GND-black
A: AUDIO-blue
V: VIDEO-yellow

520

A: Video door phone for multi-apartment model with one button connects one indoor phone

-1

B: Video door phone for multi-apartment model with one button connects several indoor phones

-2

C: Video door phone for multi-apartment model with multiple buttons connects several indoor phones

-3

D: Integrated installation wiring diagram show:

-4

Installation outdoor camera show:

HTB1r_.MQXXXXXcjapXXq6xXFXXXQ



Rfid electronic lock instuctions:

Lock details intruduce: Exit Reader/Infra sensor port/Manual door opener/Entrance Reader/Keychain/button wiring diagram/Power positive/GND/OPEN/DoorBell

Access card lock is a seurity-in-one smart card lock,using the latest technology developed, flexibel access control circuit and the electronic locks are integrated, easy to intall and use, this lock using infrared programmer to program the card issuer and electronic locks deleted card operation as long as the infrared remote control transmitter power locsk at the mouth openting to the infrared receiver programming operation, power locks RF card support, wireless to open the door, open the door please keep the keys well i came with the company!

Technical Parameters

Power supply: DC 12V/500ma
Reading distance: 0-6CM
Temperature and humidity: -25degree to +55degree, 20% to 95%
Demensions: Length 170mm*Width 100mm*High 65mm
Card Type: EM4100 card or mifare
Reader Frequency: 125KHZ or 13.56MHZ
Networking: TTL232 OR Rs 485
Record capacity: 1K (supports expansion to 60k)
Sensing distance: ID card (0-15cm)/Mifare(0-8cm)




Access control power supply:

This is a 110V-260V Access Control Power supply, it is made up of high quality electronic components and advanced international technology, it has anti-interference ability, provide very stable and reliable output in a various applications such as lock control/ controller control/ exit button/ RFID-ID Reader.etc.

  • It controls electric lock directly.
  • Can reduce the load of access controller, save wiring to reduce the hidden trouble
  • Based delay control circuit, lock time can be in 0-15 seconds
  • Automatic protection function, unexpected situations such as when the power supply
  • short-circuit occurs, the power may be temporarily disconnected or the fuse auto insurance line off
  • Operative device: E/M Lock, Access Controller, Exit Push Button.
  • Rfid electronic lock instuctions:

HTB1tSrtPFXXXXbDXXXXq6xXFXXX4

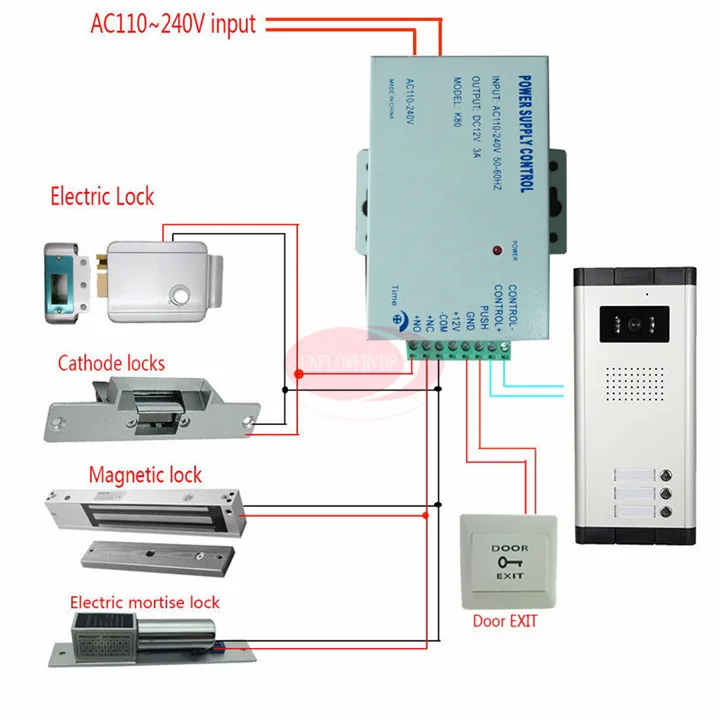

This kinds of outdoor unit support all kinds of door locks, if you need other door locks ship together, Pls kindly send message to me! (:

-3

Conditions: New: A brand-new, unused, unopened, undamaged item in its original packaging!



520-3-V4.3

We will send power adapter to you according to your country!

111

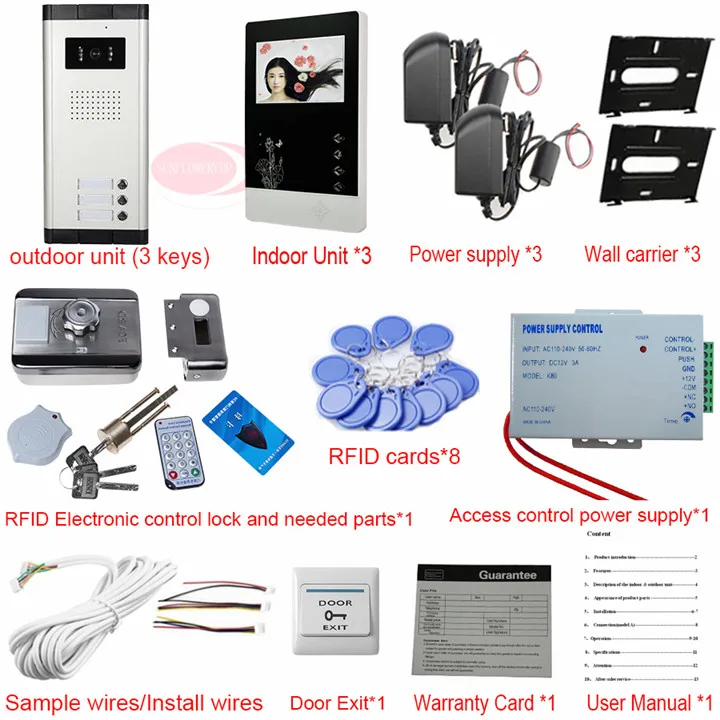

Package Content:(3V3)

  • 3 x Indoor monitors TFT-lcd 4.3 inches (black color)
  • 3 x Power adapters for indoor monitors (110V-240V US/AU/EURO/CA 2-pin plug,/UK 3-pin Plug)
  • 3 x Indoor unit wall carriers
  • 1 x Infrared night vision/waterproof outdoor camera with 3 buttons
  • 1 x Access control power supply
  • 1 x Rfid cards electronic control lock
  • 8 x Rfid cards
  • 1 x Door exit
  • 1 x Sample wires (3-5meters)
  • 1 x English user manual/Warranty card
  • Standards screws and expansion bolts for the installation
  • Standards 2-core wires/4-core wires/5-core wires help install (If you need more longer test/install wires, kindly tell me!
